Oliver Machinery

6" Parallelogram Jointer with Oliver HCX Helical Cutterhead - 1-1/2 HP - 1Ph

Item #198979
Regular price $ 2,199 . 99
Sale price $ 2,199 . 99 Was $2,199.99
Skip to product information
New
1 of 8

Oliver Machinery

6" Parallelogram Jointer with Oliver HCX Helical Cutterhead - 1-1/2 HP - 1Ph

Item #198979
Regular price $ 2,199 . 99
Sale price $ 2,199 . 99 Was $2,199.99
The Oliver 4225 Jointer has everything you'll need in a 6" jointer. Power, precision, and a true Oliver HCX helical cutterhead (not a linear spiral d. . . View More Details
Backordered Online Shipping Info

About This Product

The Oliver 4225 Jointer has everything you'll need in a 6" jointer. Power, precision, and a true Oliver HCX helical cutterhead (not a linear spiral design) with 4-sided carbide inserts providing excellent cut quality. This jointer is truly in a class by itself for its size.

Features:

  • Extra-long precision ground tables provide a stable work surface
  • Parallelogram design provides smooth accurate cuts
  • Cast iron frame offers stable table support
  • Fully enclosed cabinet with 4" port for superior dust management
  • Cabinet includes push pad storage
  • Oliver HCX Helical cutterhead with premium carbide inserts
  • 4-sided cutting inserts are indexed and easy to replace

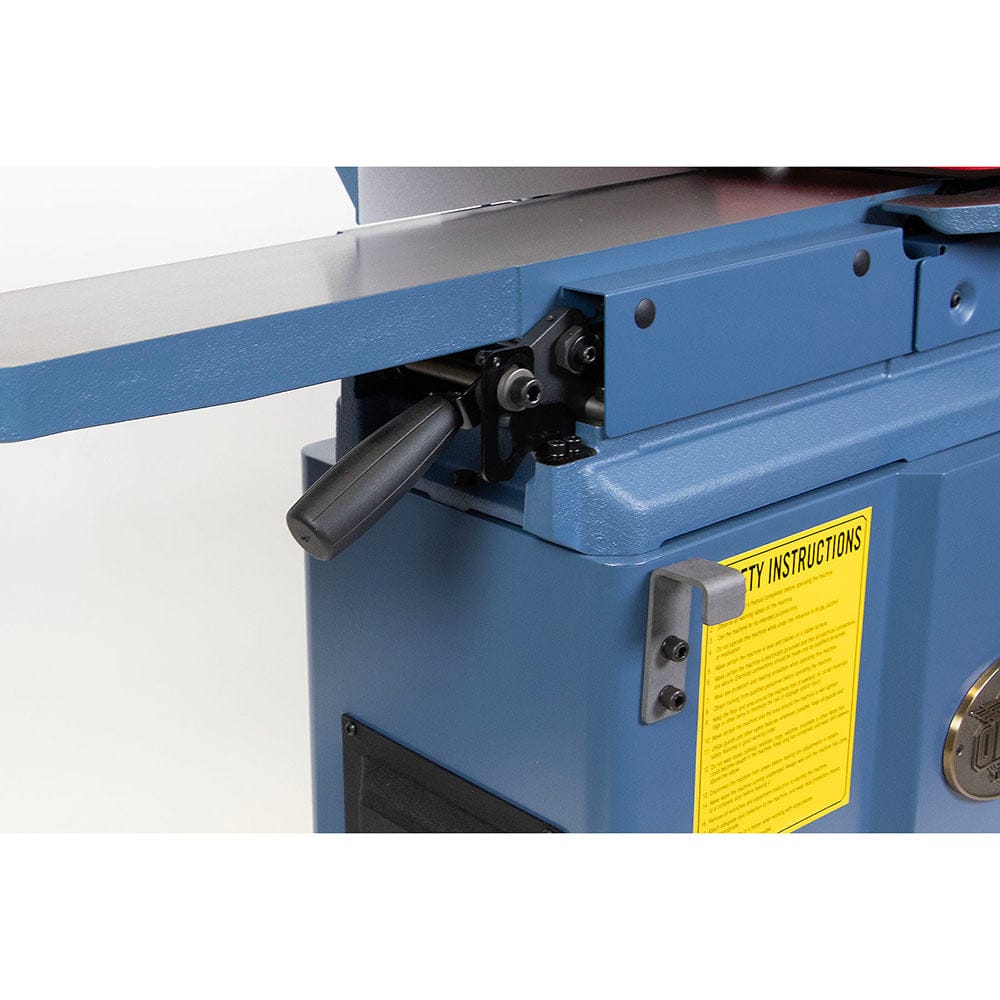

  • Lever controlled infeed and outfeed table adjustment allows quick set-up
  • Long precision ground fence tilts up to 135° with positive stops at 45° and 90°

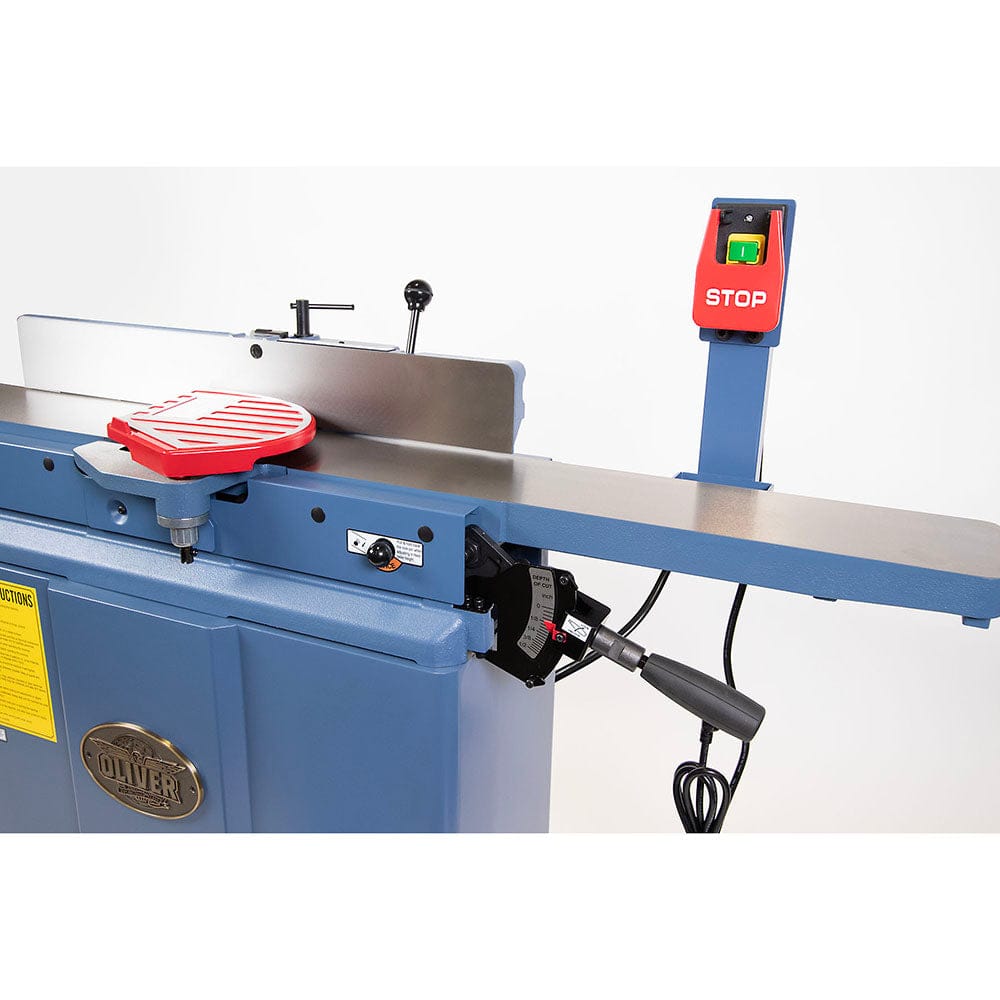

  • Easy to read depth of cut gauge

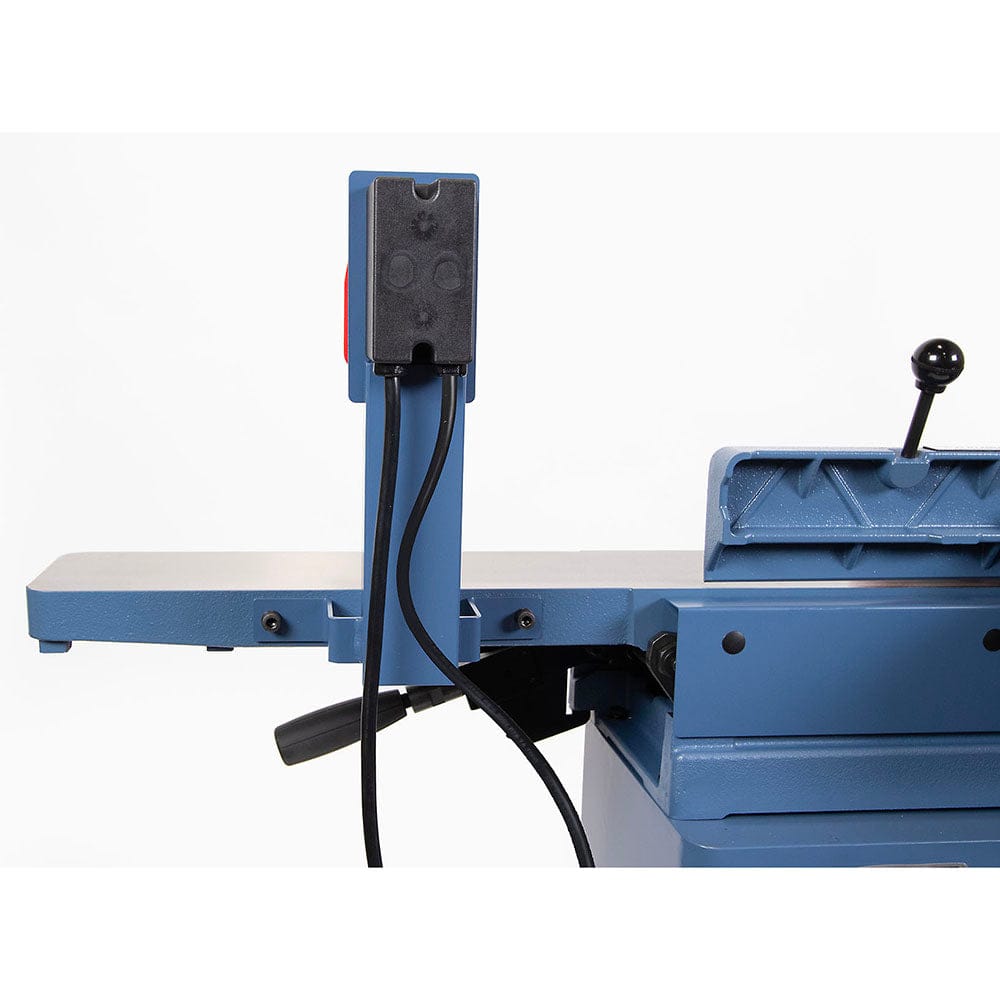

  • Large, lockable pedestal mounted paddle on/off switch for added safety and user ease
  • Powerful 1.5HP 1Ph 115V/230V TEFC motor pre-wired 115V
  • Poly V-belt drive efficiently delivers power to the cutter head
  • CSA Listed

Specifications:

  • Model Number: 4225.215
  • Stock Number: 4225.215 (1-1/2" HP, 1Ph, Helical Cutterhead)
  • Infeed Table Travel: 1/2"
  • Cutterhead Speed: 5,500 RPM
  • Number of Knives (helical): 28 inserts
  • Maximum Depth of Cut: 1/8"
  • Rabbeting Capacity: 1/2"
  • Dust Port Diameter: 4"
  • Table Dimensions: 60-1/4" L x 6" W
  • Table Height: 31-1/4"
  • Fence Dimensions: 29” (L) x 3-7/8” (H)
  • Fence Tilts: 90°, 45°, 135°
  • Positive Stops: 90° and 45°
  • Motor: 1.5HP 1Ph - 115V/230V (pre-wired 115V)
  • Net Weight: 240 lbs
  • Gross Weight: 410 lbs

What's Included:

  • (1) Oliver 4225.215 6" Jointer
  • (10) Torx screws for inserts
  • (1) Box of 5 cutterhead inserts
  • (2) Push Blocks
