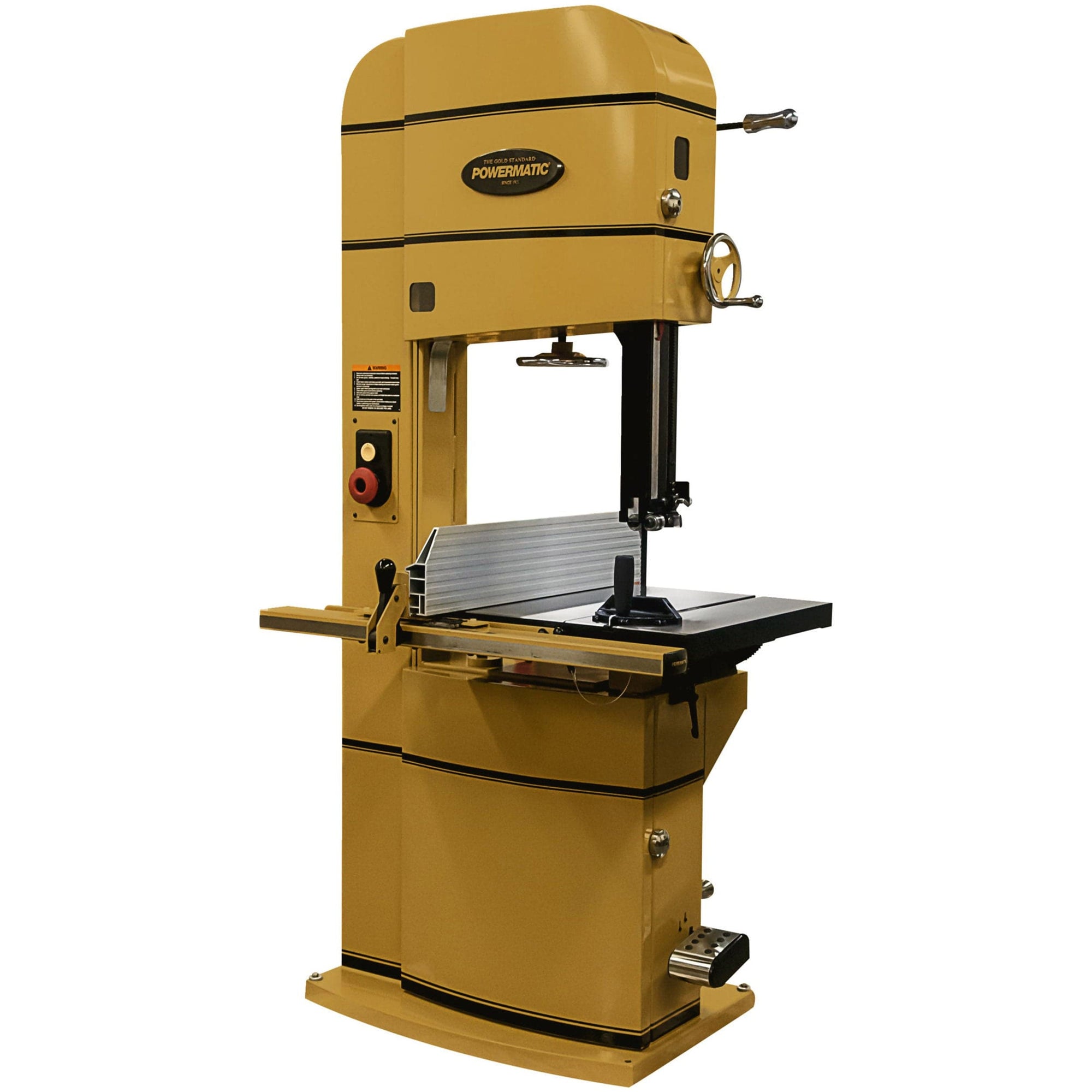

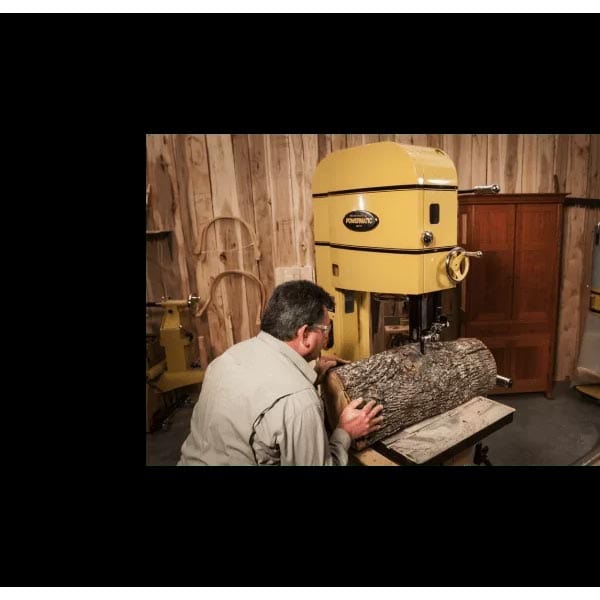

The Powermatic® PM2013B-3 Bandsaw is a professional-grade tool designed for accuracy, durability, and safety in woodworking applications. It features a sturdy cast iron table, trunnion assembly for maximum rigidity, and an exclusive Accu-Fence system that provides complete adjustability for precise cuts. This bandsaw includes a solid steel resaw post, a blade tension release with an electrical interlock and high-end blade guides for stability and accuracy. It also boasts a four-sided blade guard, an integrated foot brake, and a magnetic switch for enhanced safety. Your larger projects and workpieces call for more power, resaw capacity, and cast iron. The PM2013B-3 features legendary quality, precision, and attention to detail, helping woodworkers expand their ambition for over 100 years.
Bandsaw Specs: What They Mean & Why They Matter:
- Horsepower (HP) – Determines cutting power, especially important for hardwoods and demanding resawing.
- Resaw Height – The maximum board thickness the saw can slice vertically.
- Maximum Cutting Width – The maximum width of material that fits between the blade and the frame.
- Blade Width Range – Indicates what blades the saw can accept, affecting both curve cutting ability and resaw performance.
- Table Size – Affects how well the saw supports and stabilizes your workpiece.
-
Construction Material – Heavier material better absorbs vibration and adds stability.
Features:
- Heavy-duty 5 HP motor provides power needed for all projects

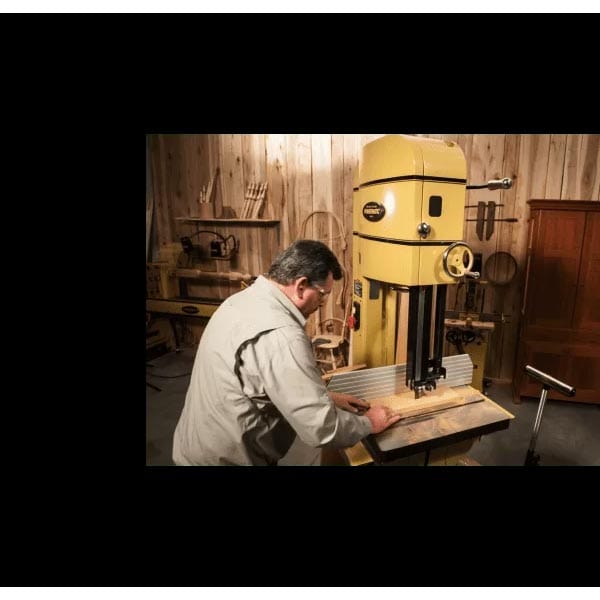

- Fully adjustable, exclusive T-Square style Accu-Fence maximizes alignment to the blade and squaring to the table
- Robust cast iron table and trunnion assembly provides maximum rigidity, offering stability and support for large workpieces
- Positive locking cam with pressure adjustment allows for secure and stable fence positioning, preventing unwanted movement during operation
- Oversized side plate provides versatility by allowing operation in both horizontal and vertical positions
- Solid steel resaw post enhances rigidity, ensuring stability and accuracy during resawing operations
- Blade tension release with an electrical interlock prevents the bandsaw from starting when the blade is de-tensioned
- Heavy-duty upper wheel support and tracking mechanism contribute to smooth operation and precise blade tracking

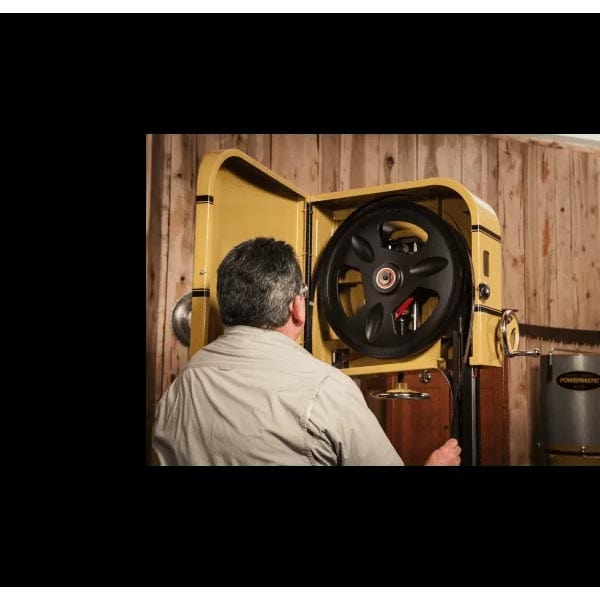

- Solid cast iron wheels reduce vibration and noise while providing the necessary momentum required for heavy resawing, ensuring efficient cutting performance

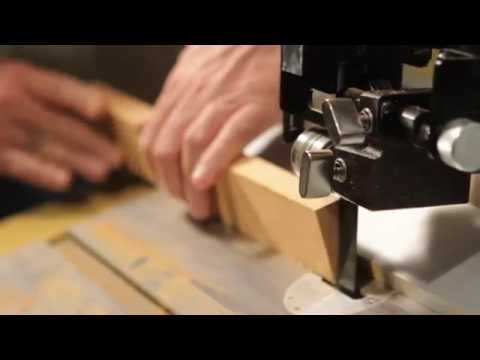

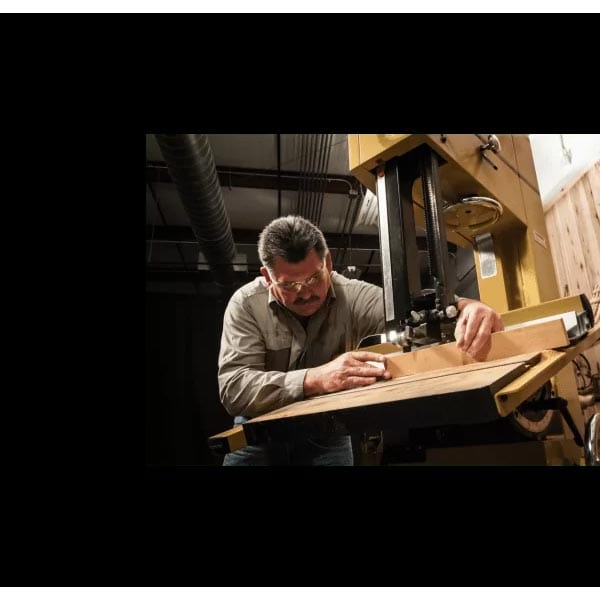

- High-end blade guides with toolless adjustment offer stability, minimizing blade deflection and increasing cut accuracy
- Four-sided blade guard provides optimum protection, ensuring safety during operation by preventing accidental contact with the blade
- Integrated foot brake allows for quick stopping of the blade, enhancing operator safety and control
-
Magnetic switch protects the motor from potential harm caused by electrical supply issues, ensuring safe and reliable operation
Specifications:
- Motor HP: 5 HP
- Voltage: 230V / 460V (pre-wired 230V)
- Phase: 3 PH
- Amps (if applicable): 15/7.5A

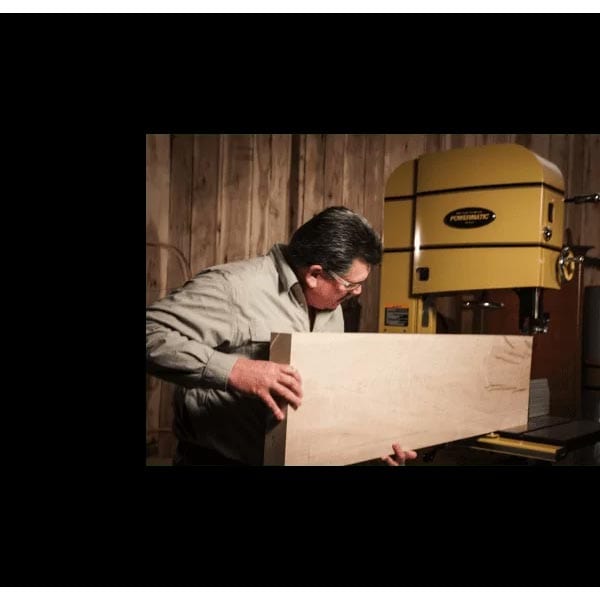

- Max Resaw Height: 18"
- Max Cutting Width: 20"
- Wheel Size: 20"
- Wheel Material: Cast Iron
- Quick Blade Release: Yes
- Blade Length: 170"
- Blade Width Range: 1/4" - 1-1/2"
- Blade Speed: 2300/4400 SFPM
- Blade Guide Type: Tool-less adjustment
- Table Size: 24" X 27"

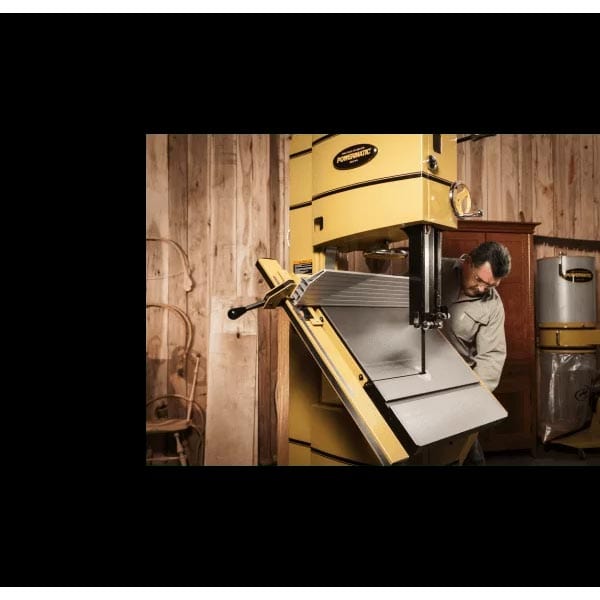

- Table Tilt (L/R Degree): 10°/45°
- Table Material: Cast Iron
- Dust Port Size: 4"
- Height: 81-1/2"
- Footprint: 38" L x 42" W x 81-1/2" H
- Warranty Information: 5 Year Manufacturer Warranty
What's Included:
- (1) Powermatic - PM2013B-3 20" Woodworking Bandsaw
- (1) Hook Type Bandsaw Blade - 170" x 1" x 3 TPI x 0.035"
