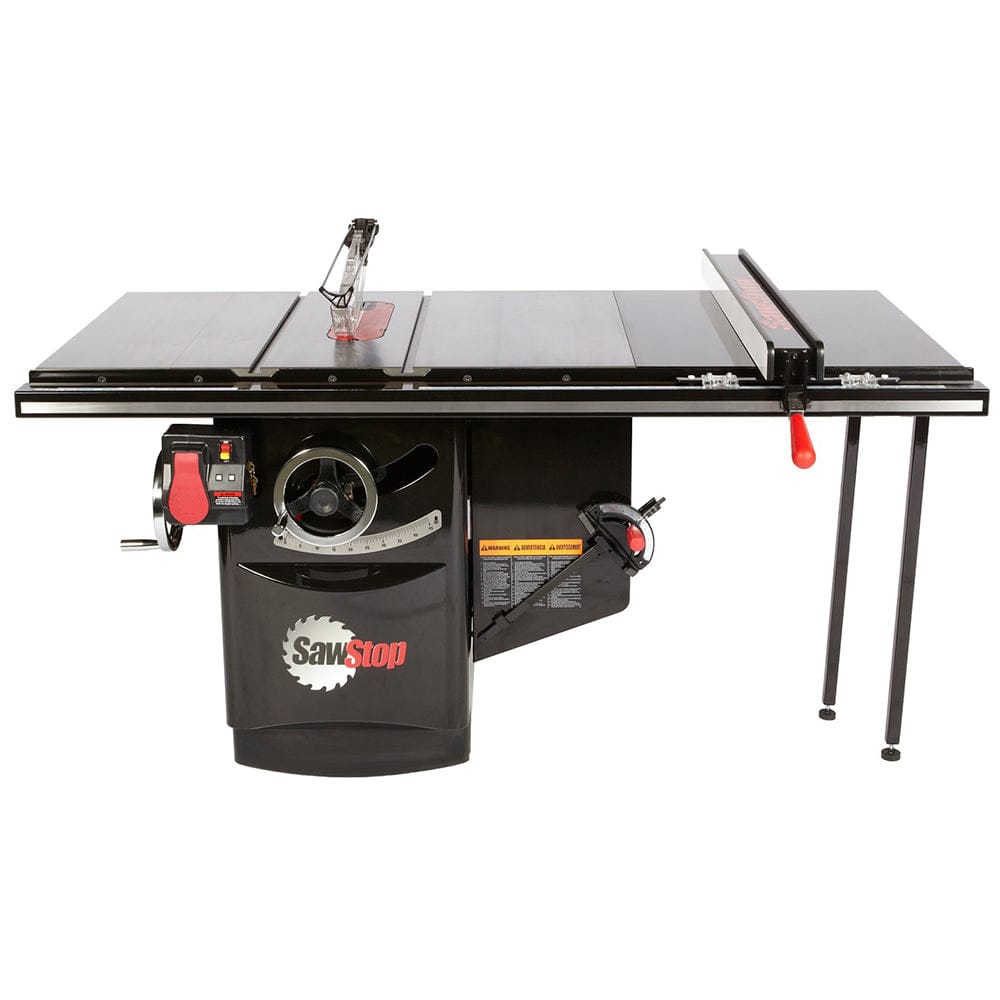

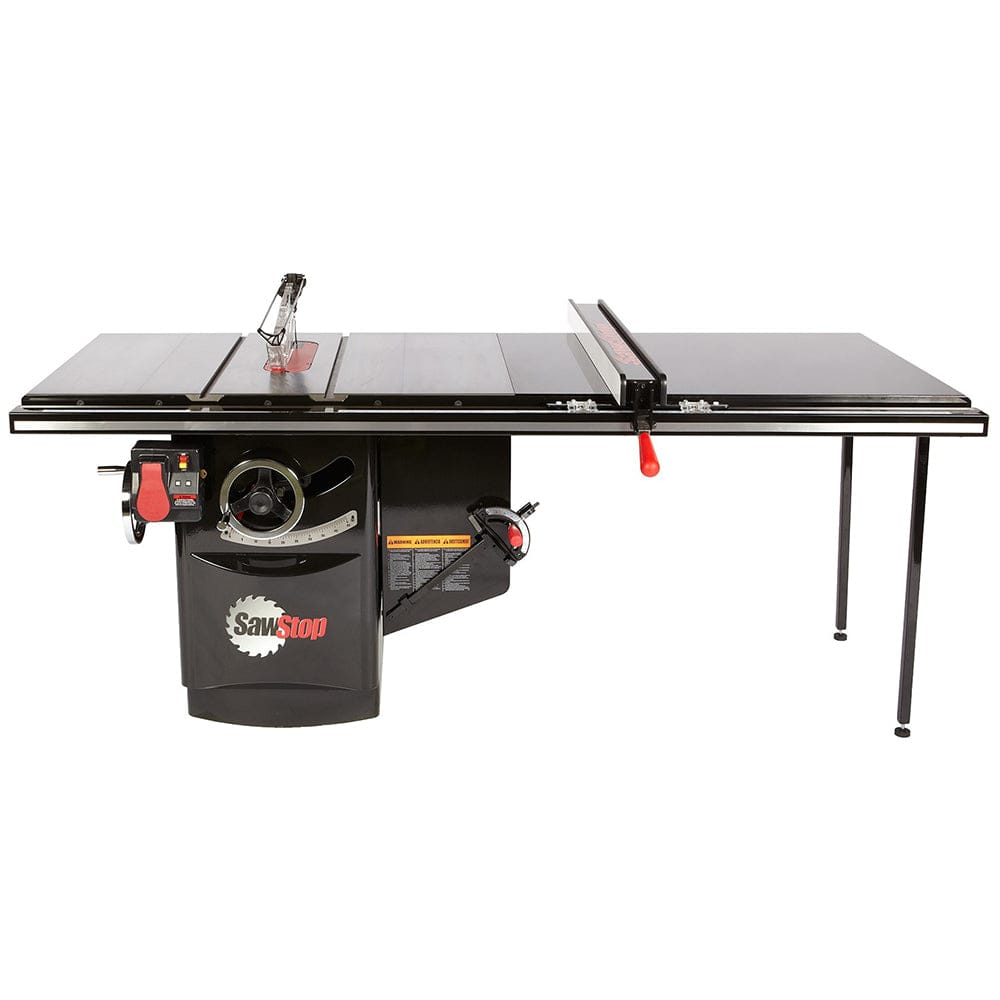

The SawStop® Industrial Cabinet Saw is built for serious production shops that demand accuracy, power, and the highest level of operator safety. With a heavy-duty 5HP, 3‑phase, 480V motor and nearly 700 lbs of cast iron and steel, this machine provides unmatched stability and cutting performance. The 36" Industrial T‑Glide Fence System delivers rock‑solid lockdown and years of repeatable, accurate cuts. And at the core of every SawStop machine is the patented safety brake that stops the blade in under 5 milliseconds upon skin contact—giving you peace of mind on every cut.
Features:
- Patented SawStop Safety System stops the blade in <5 milliseconds on skin contact and drops it beneath the table to minimize injury.
- Integrated Lock‑Out/Tag‑Out switch prevents unauthorized operation.
- Motor access panel interlocks prohibit saw operation when doors are unlatched.
- 5HP, 3‑phase, 480V motor for heavy-duty cycles and demanding materials.
- Nearly 700 lbs of iron and steel ensure long‑term durability and vibration‑free performance.
- Massive trunnion, thick arbors, and gas‑piston assist deliver smooth, precise blade adjustments.
- Heavy‑gauge steel construction ensures accurate, deflection‑free cuts for years.
- Smooth glide plates and rigid lockdown offer superior control and reliability.
- Provides up to 99% dust capture with the included above‑table dust collection blade guard and under‑table shrouding.
- On‑board control box houses the on/off switch, power paddle, and SawStop monitoring computer.
- System continuously checks all safety functions before and during use.
- Motor: 5HP, 3‑Phase, 480V, 60Hz
- Blade Diameter: 10"
- Arbor Size: 5/8"
- Max Blade Speed: 4,000 RPM
- Rip Capacity (Right): 36‑1/2" (36" T‑Glide System)
- Rip Capacity (Left): 12‑1/2"
- Max Cutting Depth @ 0°: 3‑1/8"
- Max Cutting Depth @ 45°: 2‑1/4"
- Bevel Range: 0°–45°, Left Tilt
- Table Size (with Extension): 30" D × 69‑1/4" W
- Overall Height: 34"
- Construction Weight: ~700 lbs
- Country of Origin: Taiwan
- (1) 5HP, 3ph, 480v Industrial Cabinet Saw
- (1) Industrial T-Glide Rip Fence
- (1) Industrial T-Glide 36" Rails
- (1) Industrial T-Glide Extension Table for 36" Rails
